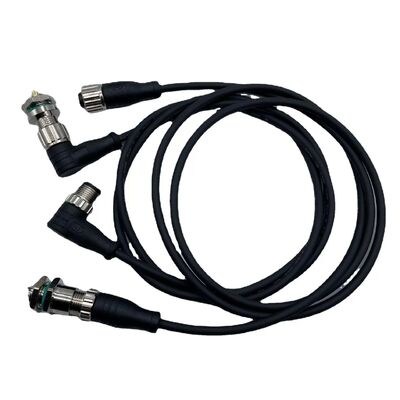

M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector

100 sets
MOQ
2 USD -3 USD
Price
M12 Waterproof IP67 Female Panel Mount Connector Screw Lock Industrial Circular Connector
Features Gallery Product Description Chat Now
Features
Specifications
Withstand Voltage: ≥1000V AC (1 Minute Duration)
Contact Material: Phosphor Bronze, Gold Plated
IP Protection Rating: IP68
Rated Voltage: 250V
Housing Material: Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Contact Resistance: ≤5mΩ
Highlight:

IP67 Female Panel Mount Connector

,

M12 Female Panel Mount Connector

,

Waterproof Industrial Circular Connector
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: M12 waterproof plug
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
M12 Connector - Waterproof IP67 Panel Mount Female Receptacle Screw Lock Industrial Circular Connector
Product Overview

The M12 Board-End Waterproof Plug is the device-side counterpart of a standard M12 field cable plug, designed for mounting on control cabinets, sensor boxes, PLC modules, or edge gateways. This panel-mount receptacle provides a sealed, keyed, vibration-proof panel penetration for industrial applications.

Following IEC 61076-2-101/2-104 dimensional standards, it intermates with major brand M12 cordsets and serves as the default connector for distributed I/O, industrial cameras, and charging-pile control boards.

Key Benefits
  • Single sealed board landing point eliminates internal splices
  • Coding prevents field mis-mating with exclusive keyways
  • Current ratings: 4A (2-5 pin), 2A (6-8 pin), 1.5A (12-17 pin)
  • Flexible mounting options: front/rear panel, straight/90° PCB
  • Gold-plated phosphor-bronze contacts with ≤5 mΩ resistance
  • Reduces BOM complexity compared to gland + terminal block solutions
  • Repairable design - board can be replaced without cutting external harness
Technical Specifications
Parameter Specification
Standard IEC 61076-2-101 / 2-104
Coupling M12 × 1.0 threaded
Mounting Front / rear panel, PCB DIP 180°/90°
Pin Configurations 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17
Rated Current 4A (2-5 pin), 2A (6-8 pin), 1.5A (12-17 pin)
Rated Voltage 250V (2-4 pin A), 60V (5 pin), 30V (6-17 pin)
Contact Resistance ≤ 5 mΩ
Protection Rating IP67 mated (IP68/IP69K optional)
Operating Temperature -40°C to +85°C / +105°C
Mating Cycles ≥ 500 (plastic), ≥ 1000 (metal)
Certifications CE, RoHS, REACH, UL/CCC options
Feature Details
Coding Options
A / B / D / X / T / L (2-17 pin)
Termination
PCB straight DIP, 90° DIP, solder cup, or fly-wire
Shell Material
PA66+GF (black/grey) or Ni-plated brass
Wire Size
0.14-0.75 mm² (26-18 AWG)
Applications
  • PLC / DCS / distributed I/O cabinets
  • Industrial communication networks (PROFINET, EtherNet/IP, PROFIBUS)
  • Edge gateways & IoT boxes
  • Machine vision & robotics systems
  • Charging pile / BMS boards
  • Outdoor LED, solar, and transport systems
