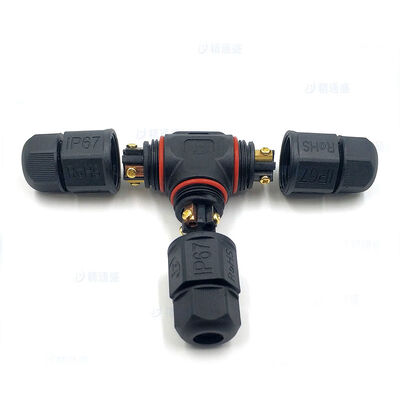

3 Way IP68 Waterproof T Type Wire Connector 16A 250V For Outdoor LED Garden Lighting Branch

100 sets
MOQ
2 USD -5 USD
Price
3 Way IP68 Waterproof T Type Wire Connector 16A 250V For Outdoor LED Garden Lighting Branch
Features Gallery Product Description Chat Now
Features
Specifications
Contact Resistance: ≤5mΩ - 10mΩ
Withstand Voltage: ≥1000V AC (1 Minute Duration)
IP Protection Rating: IP67
Housing Material: Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Rated Voltage: 300V-600V
Contact Material: Phosphor Bronze, Gold Plated
Highlight:

Waterproof T Type Wire Connector

,

IP68 T Type Wire Connector

,

3 Way Waterproof Wire Connector 250V
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: Three-way round waterproof connector
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
IP68 Waterproof T-Type Connector 16A 250V 3-Way Circular Power Splitter for Outdoor LED Garden Lighting Branch
Three-Gang Circular Moisture-Resistant Coupler - A compact, weather-defying round interconnect that allows a single inbound cable to diverge safely toward two outbound appliances while preserving particle-excluding and fluid-blocking seals across the entire unit.
Key Benefits
  • Immediate splitting without cabinet requirements - deploy extra streetlamps, cameras, or detectors anywhere along a stretch
  • Dependable IP67/IP68 protection with O-rings and threaded barriers against precipitation, jet-washing, and dampness
  • Job-site attachable or pre-manufactured options accepting 4-10 mm cable diameter and 0.5-2.5 mm² wires
  • Wrong-hookup prevention via coded inserts for Hot/Neutral/Ground or signal allocation
  • Factory-standard gold-coated brass contacts with touch resistance ≤ 5 mΩ
  • Wide temperature range: -40°C to +85°C (up to +105°C variants available)
  • Reduces inventory burden by replacing multiple components with one three-way unit
Technical Specifications
Parameter Value
Contact Count 2 / 3 / 4 (most common: 3 contacts)
Nominal Current 10A - 20A (3-contact power) / 4A (M12 4-contact signal)
Nominal Voltage 300V / 600V AC (universal) / 250V (M12 A-code)
Environmental Protection IP67 base, IP68 optional (when coupled and capped)
Suitable Cable Diameter PG7 4-6.5mm / PG9 6-8mm / custom up to 11mm
Wire Gauge 0.5-2.5 mm² (20-14 AWG) screw style
Contact Resistance ≤ 5 mΩ
Insulation Resistance ≥ 100 MΩ @ 500V DC
Dielectric Endurance 1500-4000V AC / 1 minute
Operating Temperature -40°C to +85°C (up to +105°C variant)
Shell Material PA66+GF, PBT, nickel-brass, 316 stainless steel option
Engagement Cycle Longevity ≥ 500 cycles (plastic), ≥ 2000 (LP16-class)
Certifications RoHS, CE, UL/CCC cable option, IEC 61076-2-101 (M12 version)
Applications
  • Exterior LED lighting: road lamps, patio/frontage/scenic lights, tunnel and bridge illuminators
  • Solar and battery systems: photovoltaic string splitting, combiner box secondary supply
  • Monitoring and smart city infrastructure: Power-over-Ethernet or DC line distribution
  • Manufacturing automation: M12 three-way taps for proximity switches, IO-Link systems
  • Marine, camper, and agricultural environments: bilge pump splits, irrigation systems
  • Event and concert power provision: temporary outdoor audio/lighting distribution
Competitive Advantages
  • 70% smaller footprint than metal junction enclosures
  • No rust-vulnerable lid screws or internal moisture buildup
  • 5-minute setup compared to 20 minutes for traditional enclosures
  • Maintains IP rating while being re-openable and visible for inspection
  • Curved profile sheds moisture better than square connectors
  • Reduces wire waste and attachment count per split node
