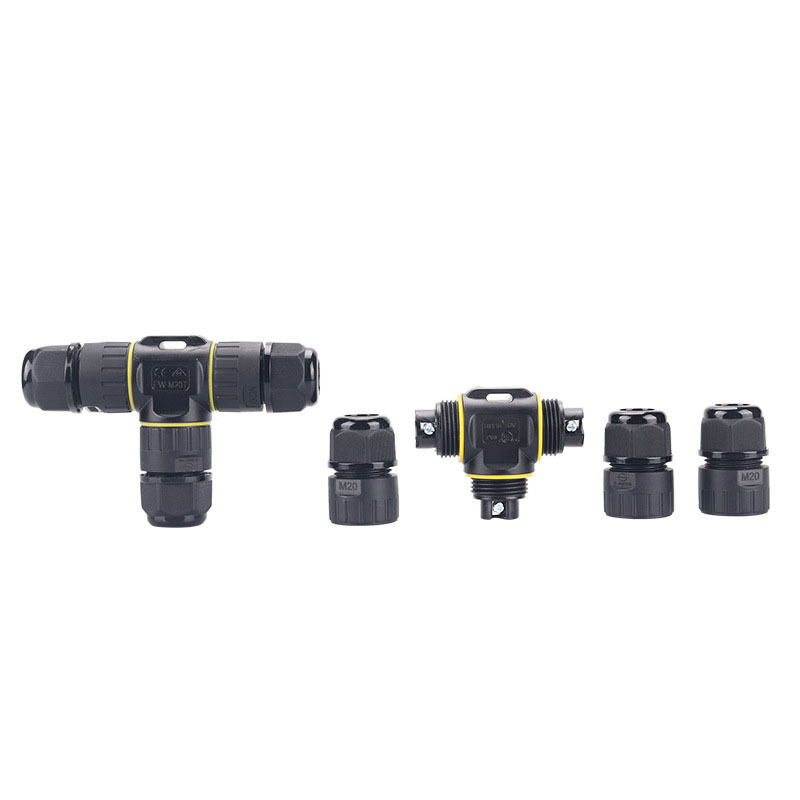

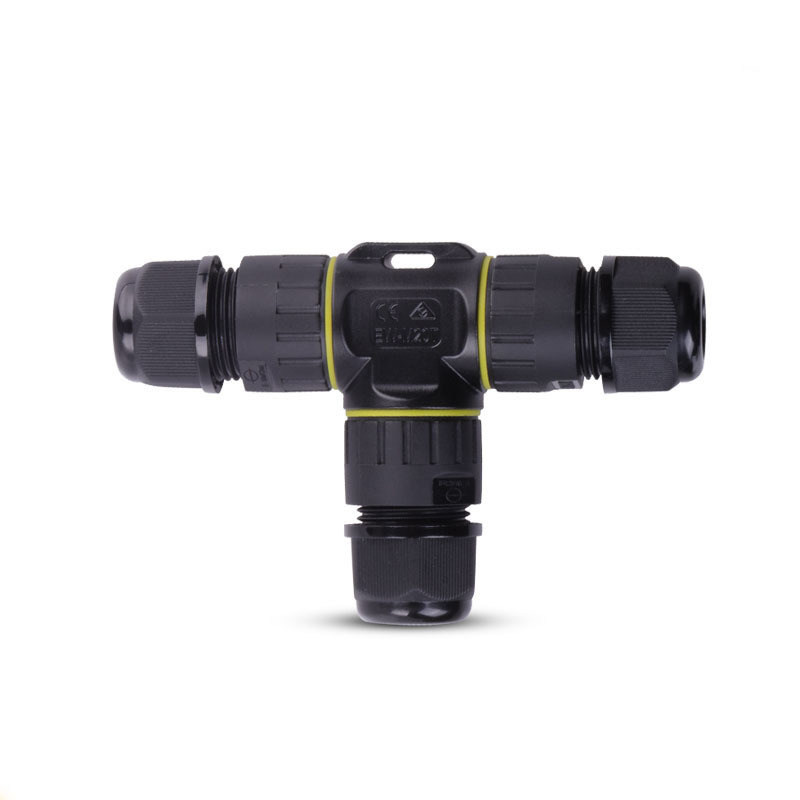

Three Way Waterproof Circular Connectors IP68 LED Backlight Power Cable Connector

The Three-Way Round Waterproof Connector (also called 3-way T-type/Y-type circular splitter, 3-port sealed junction connector) is a compact, IP-rated circular interconnect that enables one incoming cable to branch safely into two outgoing devices while maintaining dust-tight and water-sealed protection.

Available in generic M20/M16/LP16 style 3-pin round body or M12 A-coded 3/4/5-pin T/Y splitter configurations for various industrial applications.

• One-tap branching without panel requirements - easily add second devices mid-span
• True IP67/IP68 sealing with dual O-ring protection

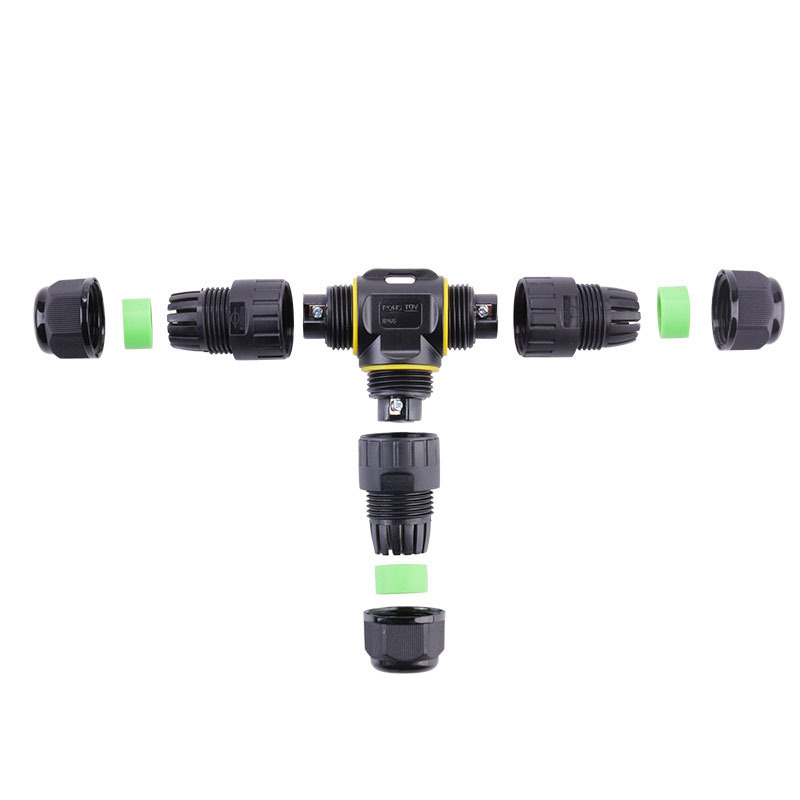

• Field-wireable or pre-molded assembly options
• Anti-miswire keying prevents reversed polarity
• Industrial-grade gold-flash brass or phosphor bronze contacts
• Wide operating temperature range: -40°C to +85°C
• Cost-effective solution replacing multiple components

• vs Metal Junction Box: 70% smaller, no rust-prone lid screws, 5-minute installation
• vs Zip-tie + Heat Shrink: Maintains IP rating, re-openable, visually inspectable
• vs Rectangular Connectors: Round body sheds water better, superior for hose-down applications
• vs Multiple Cordsets: Reduces cable waste and fitting requirements

• Outdoor LED lighting systems
• Streetlights and landscape lighting
• Tunnel and bridge lamps
• LED strips in signage
• Solar PV string tapping
• Battery system branches
• Off-grid cabin power distribution
• Surveillance camera systems
• Smart city sensor networks
• Industrial automation sensors
• Proximity sensors and IO-Link
• Conveyor line valve islands
• Marine and bilge pump systems
• RV and trailer light harnesses
• Agricultural irrigation systems
• Event and stage power distribution
