M12 IP67 Waterproof Connector Plastic Male Female Cable Plug 2 3 4 5 6 8 12 17 PIN

100 sets
MOQ
2 USD -5 USD
Price
M12 IP67 Waterproof Connector Plastic Male Female Cable Plug 2 3 4 5 6 8 12 17 PIN
Features Gallery Product Description Chat Now
Features
Specifications
Rated Voltage: 300V-600V
Withstand Voltage: ≥1000V AC (1 Minute Duration)
Contact Material: Phosphor Bronze, Gold Plated
IP Protection Rating: IP67
Contact Resistance: ≤5mΩ - 10mΩ
Housing Material: Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Highlight:

M12 IP67 Waterproof Connector

,

IP67 Waterproof Connector 12 PIN

,

Plastic Male Female Cable Plug
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: M12 waterproof plug
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description

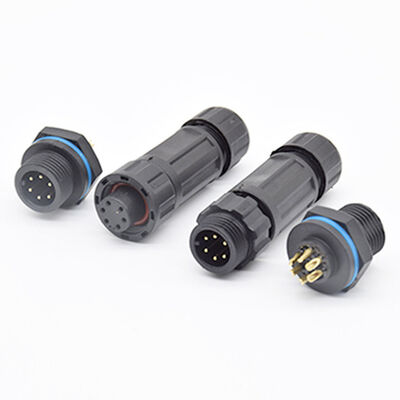

M12 IP67 Waterproof Connector
Plastic Straight/Right Angled Solder Assembled Male Female Cable Plug 2 3 4 5 6 8 12 17 PIN
Product Overview
The M12 Waterproof Plug is the most widely used circular interconnect in factory automation, featuring an M12×1.0 threaded coupling nut and standardized under IEC 61076-2-101 (sensor/actuator A/B-code) and IEC 61076-2-109 (D/X-code Ethernet). It mates with any standard M12 panel receptacle or M12 cordset, delivering IP67 sealing (optional IP68/IP69K) when properly locked with the correct O-ring and cable gland.
Available as field-wireable screw/solder/IDC plug or molded-with-cable cordset in straight or 90° configurations, male or female gender, and plastic (PA66+GF) or 360°-shielded metal shell options. It carries 4 A / 250 V on A-coded 3-4 pin builds and serves 24 VDC sensors, IO-Link, PROFINET, EtherNet/IP, and compact power feeds.
Key Benefits
  • Field-Wireable Installation: Screw-terminal version accepts 0.25-0.75 mm² (24-18 AWG) wire with no crimp gun or soldering iron required
  • Superior Protection: IP67 rating when locked, with optional IP68/IP69K for harsh environments
  • Versatile Performance: 4 A / 250 V A-code, D-code 100 Mbps, X-code 10 Gbps capabilities
  • Safe Connection: Mechanical coding prevents mismating between different port types
  • Durable Construction: Gold-plated brass/phosphor-bronze contacts, ≤5 mΩ resistance, ≥500 mating cycles
  • Multiple Configurations: Straight / 90° / panel / PCB mounting options available
  • Inventory Efficiency: Lower SKU count than molded cordsets with flexible cable length options
Technical Specifications
Parameter Specification
Standard IEC 61076-2-101 / 2-109
Coupling M12 × 1.0 threaded (~20 mm nut OD)
Pins / Coding 2-17; A / B / D / X
Rated Current 4 A (2-5 pin A), 2 A (6-8 pin), 1.5 A (12/17 pin), 4 A (D 4-pin)
Rated Voltage 250 V (2-4 A-code), 60 V (5-pin A), 30 V (6-17), 250 V (D-code)
Contact Resistance ≤ 5 mΩ (≤ 8 mΩ some builds)
Insulation Resistance ≥ 100 MΩ @ 500 V DC
Withstand Voltage 1500-2500 V AC / 1 min
Protection Rating IP67 mated (IP68/IP69K optional)
Cable OD PG7 4-6 mm / PG9 6-8 mm
Wire Gauge 0.14-0.75 mm² (26-18 AWG) screw; 0.14-0.34 mm² solder
Operating Temperature -40 °C … +85 °C (plastic), -25…+80 °C dynamic
Shell Material PA66+GF V0 / Ni-brass
Mating Cycles ≥ 500
Certifications CE, RoHS, REACH
Competitive Advantages
vs Pre-molded M12 Cordset: Field-wireable version eliminates factory lead time for custom lengths, reduces SKU count by 50%, enables repair instead of replacement, and eliminates offcut waste
vs M8 Plug: Higher current capacity (4 A vs 3 A), more pin options (up to 17 pins), D/X Ethernet coding capability, same locking mechanism
vs Junction Box + PG Gland + Terminal Block: Coded keying prevents miswiring, sealed face connection, direct PCB/panel mounting, no loose internal connections
vs RJ45 on Cabinet Door: M12 threaded locking survives vibration and oil mist; D/X-code carries PROFINET natively at IP67 rating
Applications
  • Factory automation: proximity/photoelectric sensors, valve islands, IO-Link masters, conveyor encoder taps
  • Industrial Ethernet: D-code 4-pin 100 Mbps PROFINET/EtherNet/IP, X-code 8-pin Gigabit camera drops
  • Machine building & retrofit: custom non-standard machines, lab automation, field repair of damaged sensor leads
  • Robotics & AGV: wrist-tool sensors, cobot end-effector power+signal, drag-chain sensor extensions
  • Outdoor & transport: streetlight controller sensor port, solar combiner auxiliary, railway wayside telemetry
  • Food/pharma (molded PUR/IP69K build): washdown machine sensors, clean-in-place vision heads
