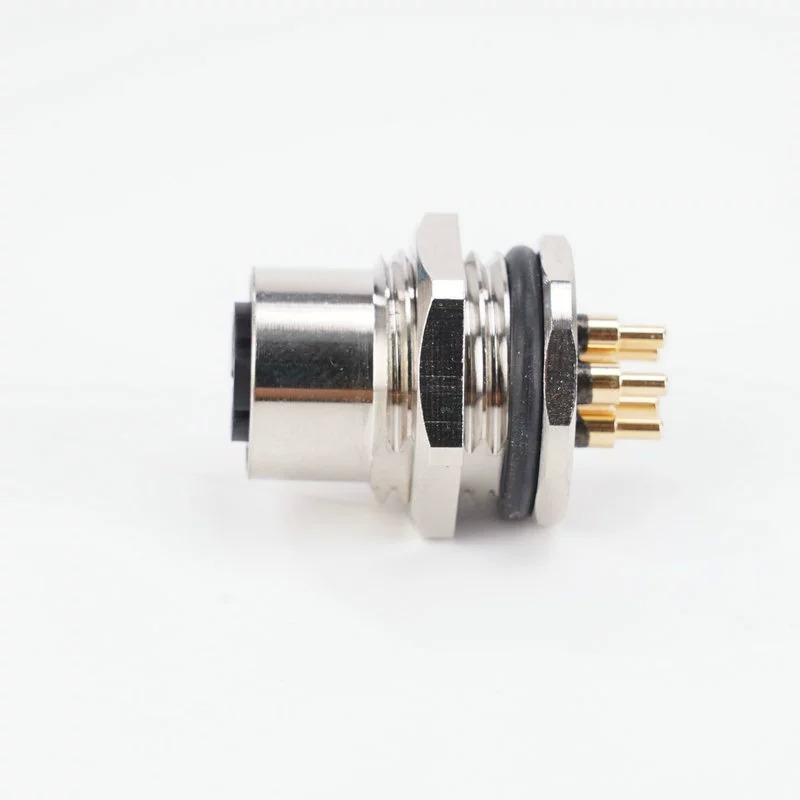

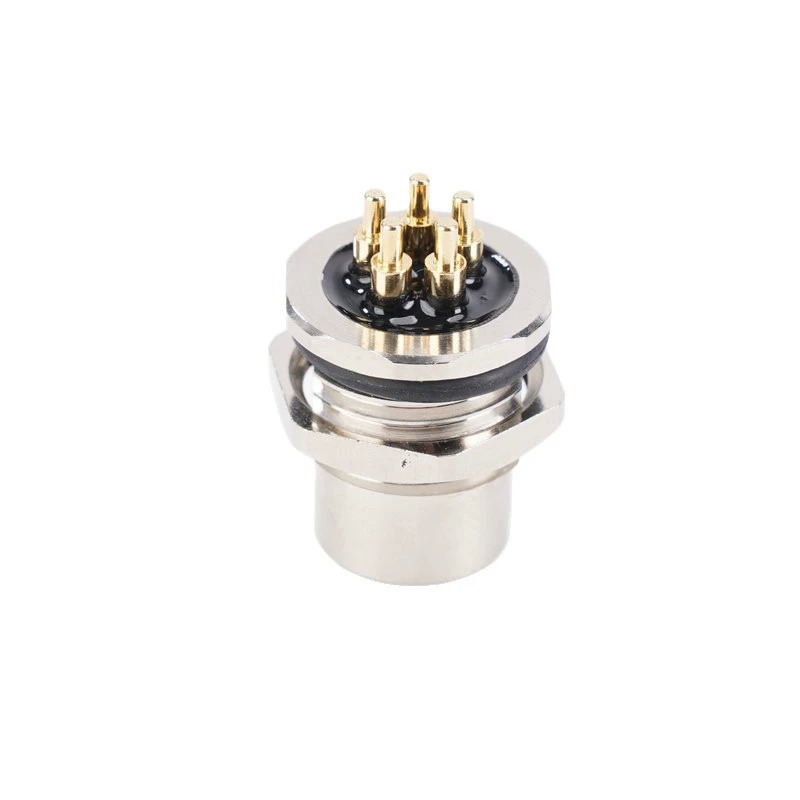

M12 Panel Connector Male Flange Fixed Solder Automotive IP67 Connectors Waterproof

The M12 Panel Flange Connector serves as the enclosure faceplate interface within industrial M12 systems. It provides the M12×1.0 threaded coupling face on control cabinet exteriors, sensor housings, I/O modules, or edge gateways, while featuring rear terminations including PCB DIP pins, solder cups, Faston tabs, or pre-attached flying leads for direct circuit board connection.

When paired with standard M12 cordsets, the panel penetration maintains IP67 sealing (with optional IP68/IP69K) against dust, rain, oil mist, and pressure washing. Compliant with IEC 61076-2-101/2-104 standards, ensuring compatibility with M12 plugs from major brands including Phoenix, Turck, TE, Molex, and Balluff.

• Single sealed board landing point eliminates internal splicing
• Coding system prevents field misconnection with exclusive keyways
• Current ratings: 4A (2-5 pin), 2A (6-8 pin), 1.5A (12/17 pin)
• Multiple mounting options: front, rear, 4-hole flange, straight and 90° PCB
• Gold-plated phosphor-bronze contacts with ≤5mΩ resistance
• Reduces bill-of-materials compared to gland plus terminal block solutions
• Repairable design - unscrew field plug while flange remains bolted

Ideal for PLC, DCS, and distributed I/O cabinets, sensor clusters, industrial automation systems, control panels, and any application requiring reliable, sealed electrical connections in harsh industrial environments.
