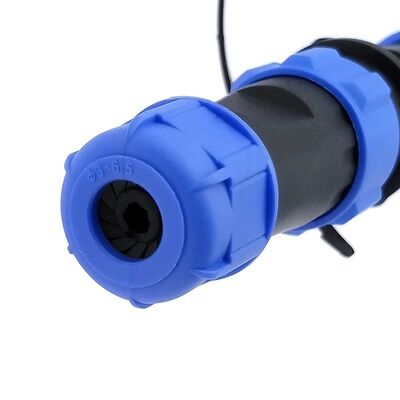

Circular Waterproof Male Female Connector 13A 3 Pin Plug Socket Connector With Dustproof Cap

5 sets
MOQ
2 USD -3 USD
Price
Circular Waterproof Male Female Connector 13A 3 Pin Plug Socket Connector With Dustproof Cap
Features Gallery Product Description Chat Now
Features
Specifications
Withstand Voltage: ≥1200V AC (1 Minute Duration)
Contact Material: Phosphor Bronze, Gold Plated
IP Protection Rating: IP68
Rated Voltage: 300V-600V
Housing Material: Nickel-Plated Brass, Stainless Steel, Glass-Fiber Reinforced PA66 (Nylon)
Contact Resistance: ≤5mΩ - 10mΩ
Highlight:

Circular Waterproof Male Female Connector

,

Waterproof Male Female Connector 13A

,

3 Pin Plug Socket Connector
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: SP13 aviation connector
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
Aviation Circular Male Female 13A SP13 3 Pin Plug Socket Connector with Dustproof Cap Industrial Power Outdoor Application
Product Overview
The SP13 Weatherproof Aviation Connector is a compact, screw-fastened circular interface from the SP family, featuring a 13 mm nominal shell diameter. While designated as an "aviation plug," it serves as a versatile outdoor and industrial sealed connector for low-to-moderate power and multi-signal wiring applications where M12 connectors are insufficient and larger M20/M25 connectors are excessive.
Available as a cable plug paired with a panel or rear-nut socket (straight style), it offers solder-cup, screw, or crimp contact options. When mated, it achieves IP68 sealing—fully dust-tight and safe for submersion beyond 1 meter.
As the optimal value choice within the SP series (SP13/SP17/SP21), the SP13 utilizes the same twist-lock mechanism, occupies less space, costs less than metal aviation connectors, and maintains full cross-compatibility with common SP1310, SP1311, and SP1312 subtypes from major suppliers.
Key Advantages
  • IP68 rated with dual O-rings and rear cable bushing—exceeds IP67 standards for extended immersion, high-pressure washing, salt fog, and damp environments
  • 13 mm slim profile supporting 2-9 contacts in a single package with varying current capacities
  • Threaded twist-lock mechanism for easy operation with gloves and vibration resistance
  • Field soldering or screw connection options accommodating 4-8 mm cable diameters
  • Gold-plated brass contacts with ≤ 5 mΩ resistance and PPS insulator rated to 260°C
  • Available in panel and inline versions for enclosure fronts and harness connections
  • Plastic construction eliminates galvanic corrosion, lighter than aluminum alternatives
Technical Specifications
Parameter SP13 Specification
Shell Size 13 mm nominal
Number of Contacts 2 / 3 / 4 / 5 / 6 / 7 / 9
Rated Current 13 A (2/3P), 5 A (4-7P), 3 A (9P)
Rated Voltage 250 V AC (2/3P), 200 V (4/5P), 125 V (6/7/9P)
Dielectric Strength 1500 V AC (2-5P), 1000 V (6-9P) / 1 min
Contact Resistance ≤ 2 mΩ (2/3P), ≤ 5 mΩ (4-7P), ≤ 10 mΩ (9P)
Insulation Resistance ≥ 2000 MΩ @ 500 V DC
Protection Level IP68 when mated
Cable Outer Diameter 4-6.5 mm / 5-8 mm (two gland sets)
Conductor Size ≤ 2 mm² (2/3P), ≤ 0.785 mm² (4-9P)
Operating Temperature -40°C to +85°C (plastic construction)
Shell Material PA66 / PC, UL94-V0
Insulator Material PPS, 260°C peak
Mating Cycle Life ≥ 500 cycles
Certifications CE, RoHS
Competitive Advantages
Versus M12: Higher current capacity (13 A vs 4 A), up to 9 pins, larger cable diameter
Versus metal GX12/GX16: IP68 rated, rust-free, 60-70% lower cost, lighter weight
Versus RJ45: Genuine keyed circular lock, withstands washdown and vibration
Versus heat-shrink splices: Reopenable, inspectable, polarized, rated for 500 cycles
Applications
  • Outdoor LED lighting and signage systems
  • Solar and battery systems including photovoltaic combiners
  • Industrial automation sensors and control systems
  • Robotics, drones, and automated guided vehicles
  • Marine and recreational vehicle electrical systems
  • Stage, event, and medical cart power connections
